Price Increase on flywheels & complete crankshaft assemblies Effective January 1, 2015

FLYWHEELS

Truett & Osborn Flywheels

CRANKSHAFTS

Part numbers for Truett & Osborn Flywheels are determined by combining the model code and the desired stroke length.  This chart lists replacement flywheels (stock cubic inch displacement) by year and model.  See stroke availability chart below for additional stroke lengths.  Big Twin flywheels from 1939-1999 are available in two different styles (TorqueMonster Weight & Lighter Weight).  The TorqueMonster flywheels are direct replacement weight (heavy) for years 1930-1981.  The left side flywheel is much wider and heavier than the right side.  The Lighter weight flywheels are the same width and weight for both right and left sides (similar to Evolution flywheels and S&S).  Late Shovelheads and Evolutions from 1982-1999 the Lighter weight would be the direct replacement weight.  TorqueMonster weight is available for these models as an option to increase low-end torque in Evos.

YEAR/MODEL FITMENT

SPECIFICATIONS

MODEL CODES

Years

Engine Size/Model

Stock Stroke

Outside  Diameter

Notes

TorqueMonster Weight

Lighter Weight

1929-1973

Harley 45”

3 13/16

7 7/8





HD45

1929-1973 Special HD 45"

3 13/16

7 7/8

Uses XL C-pin/Rods

*

HD45XL



1952-1953

K-model

3 13/16

7 7/8

Press in shafts&C-pin

*

52K

1954-1956

KH-model

4 9/16

7 7/8

Lip on sprocket hole

*

54KH



1958-1970

XLR-model

3 13/16

7 7/8



*

XLR

1957-E1981

Sportster

3 13/16

7 7/8





EXL

L1981-1985

Sportster

3 13/16

7 7/8





LXL

1986-2003

Sportster*

3 13/16

7 7/8

S&S special shafts*

*

EVXL



1915-1920

61” J model

3 1/2

8 3/4



*

J

1921-1929

74” JD model

3 31/32

8 3/4



*

JD



1930-1936

74” Flathead

3 31/32

8 1/8

 4" stroke also avail.

30T



     1936 80" Flathead

4 1/4

8 1/8



30T



1937-1948

74”/80”Flathead*

4 9/32

8 9/32

Use 1941-later C-pin*

37T





1936-1940

61” Knucklehead*

3 ½

8 1/8

Use 1941-later C-pin*

36T



1941-1947

61” Knucklehead

3 ½

8 ½



39T



1948-1952

61” Panhead

3 ½

8 ½



39T





1941-1954

74” Pan/Knuckle

3 31/32

8 ½



39T

39

     1955 74" Panhead

3 31/32

8 ½

56-64 Sprocket Shaft

56T

56

1956-1969

74” Pan/Shovel

3 31/32

8 ½



56T

56

1970-1971

74” Shovelhead

3 31/32

8 ½



70T

56

1972-1981

74” Shovelhead*

3 31/32

8 ½

82-up Sprocket Shaft*

82/72T

82/72

1972-1981

80” Shovelhead*

4 Ό

8 ½

82-up Sprocket Shaft*

82/72T

82/72

1982-1984

80” Shovelhead

4 Ό

8 ½



82T

82

1985-1999

80” Evolution

4 Ό

8 ½



82T

82

Flywheels for 74" & 80" OHV models are available in Lighter Weight or Torquemonster version.
Flywheels for 61" OHV & Big Twin Flathead models are only available in Torquemonster version.*see note*
Flywheels for 45" Flathead, K-model, Sportster, and JD models only available in stock Weight.

STROKE AVAILABILITY CHART

     * = Available at extra charge for reducing outside diameter *see note*                                                      x = Available

Harley Davidson Flywheels

Model Code & Stroke

3 1/2" 3-13/16" 3-31/32" 4" 4-1/4" 4-5/16" 4 9/32" 4-7/16" 4 9/16" 4-1/2" 4-5/8" 4-3/4" 5"
HD45   x           x   x x
45XL (XL C-pin)   x           x   x x
52K   x
54KH                 x
XLR (Race XL)   x
EXL & LXL   x     x         x x x x
EVXL   x       x
J & JD Model x   x   x         x x x
30T (flathead)     x x x
37T (flathead)     *   *   x     * * * *
36T (OHV) x   *   *         * * * *
39 & 39T x   x   x         x x x x
56 & 56T     x   x         x x x x
70T     x
82/72 & 82/72T     x   x         x x x x
82 & 82T         x         x x x x

Click here for printable page

EVENTS
APPAREL
VENDORS
TECHTIPS
ABOUT
CONTACT
BIKES4SALE
INSTRUCTIONS
HOMEPAGE

TorqueMonster Flywheels

$335.00

Lighter Weight Flywheels

$285.00

*Please Note*

JD ,45XL, XLR, EVXL, K, and KH flywheels are specialty flywheels, priced the same as Torquemonster Flywheels.    HD45 flywheels & Sportster flywheels are priced the same as Lighter Weight Flywheels.

      *Please Note*        1972-1981 Original Harley flywheels used sprocket shaft part # 24001-72.  This shaft was very large taper, set at  8 degrees, and had a lot of problems with slippage in the flywheel.  We make our flywheels for these years to use the 1982-later 23909-80 shaft.

     *Please Note*      Flywheels for 1937-1948 Big Twin Flathead and 1936-1940 61" Knucklhead are made with the 1941-later OHV crankpin, NOT the stepped crankpin as original.

I only make the stock stroke flywheels (4-9/32 & 3-1/2) in the TorqueMonster version, but since we make them with the later crankpin, the only difference between these and 1939-later OHV flywheels is the outside diameter.

We can take a set of 1939-later OHV Lighter Weight or TorqueMonster flywheels that are available in other strokes and turn down the outside diameter to be used in Flathead or 61" Knuckle engines.

     *Please Note*     Flywheels for Evolution Sportster models require the use of special "big taper" S&S brand sprocket shaft and pinion shaft. Other parts such as pinion gears and bearings must also be changed, depending on the year/model.  Please refer to the links below for more information on this conversion.

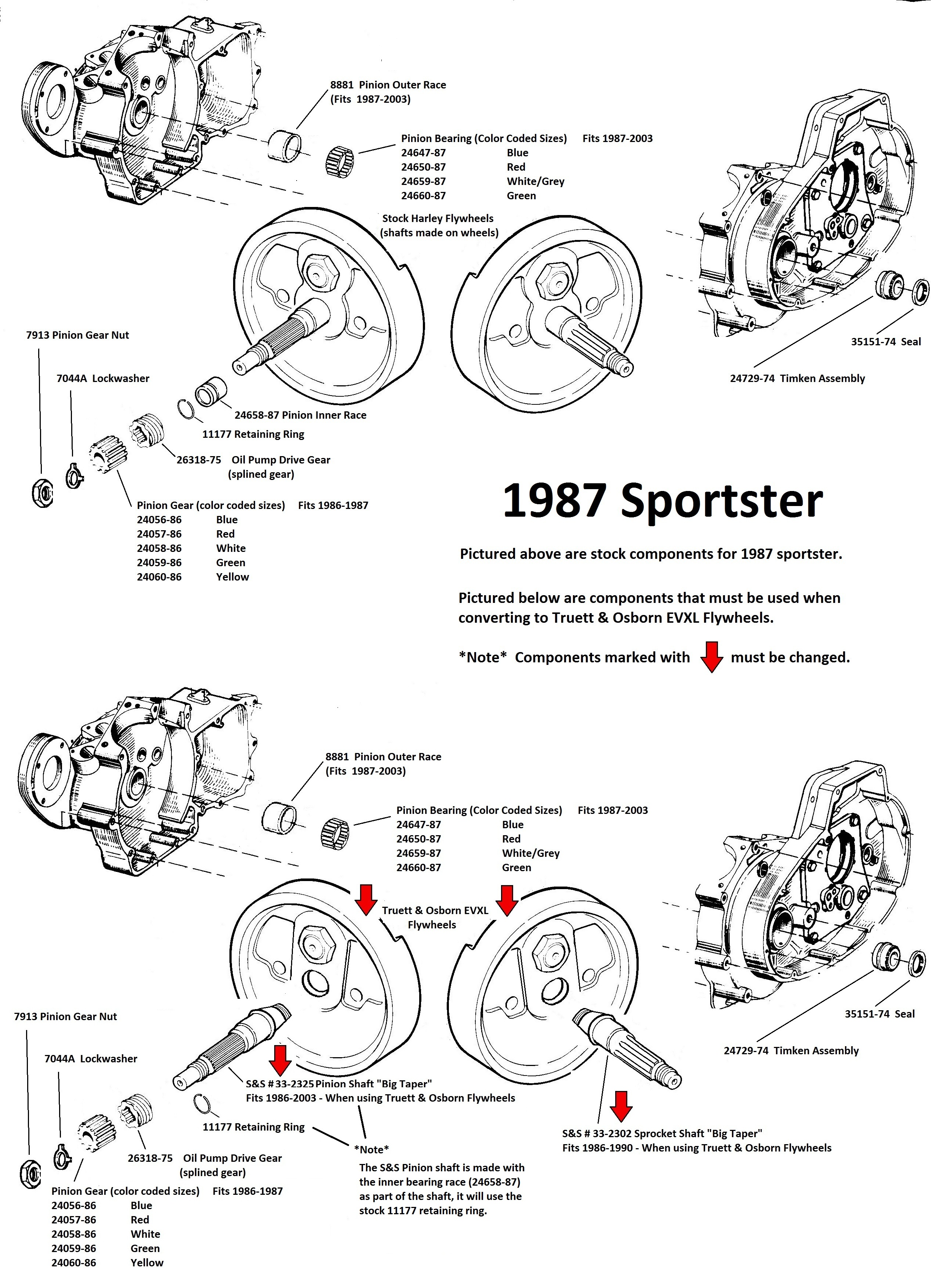

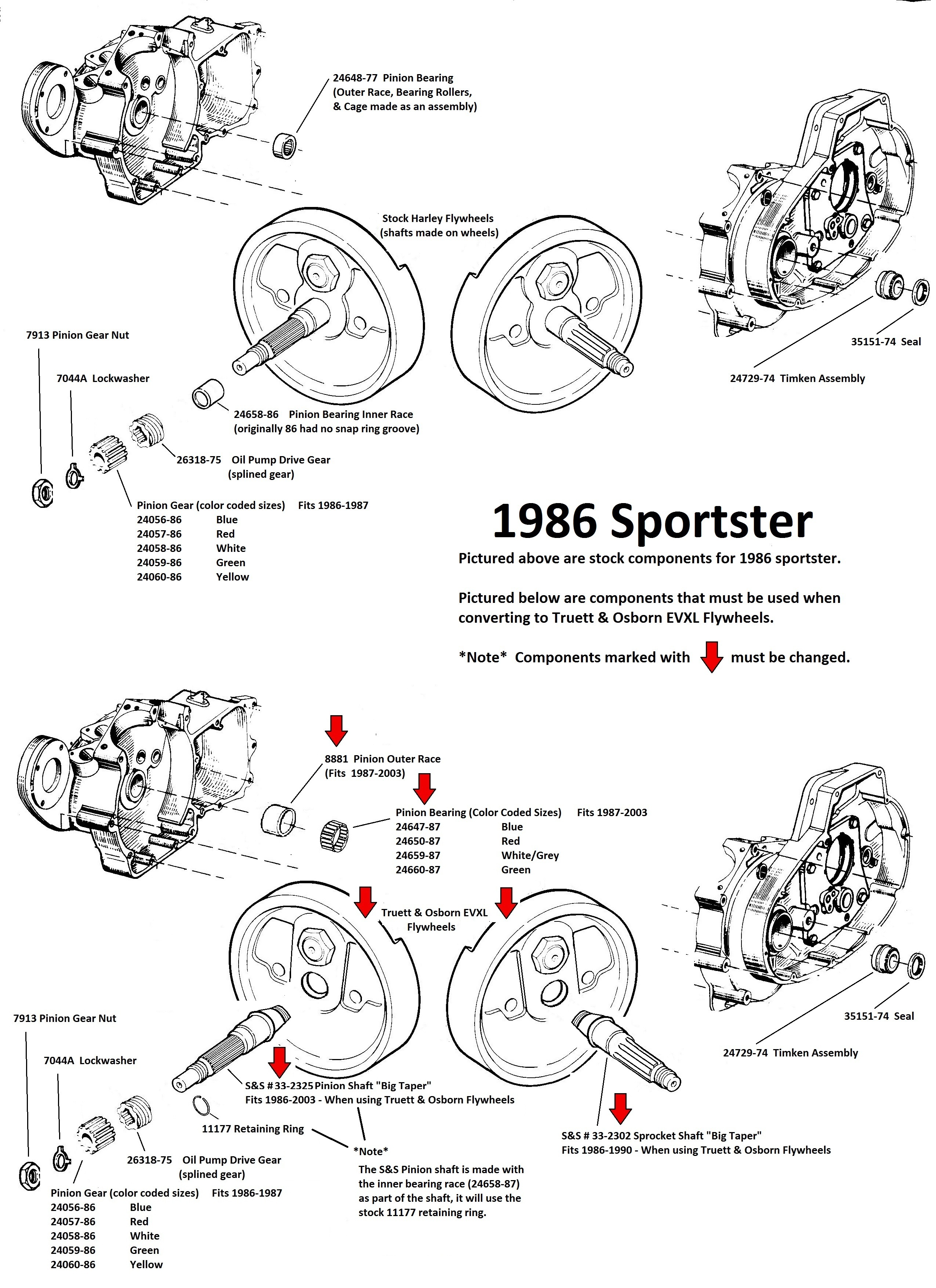

1986 only   1987 only

1988-1990  1991-1999

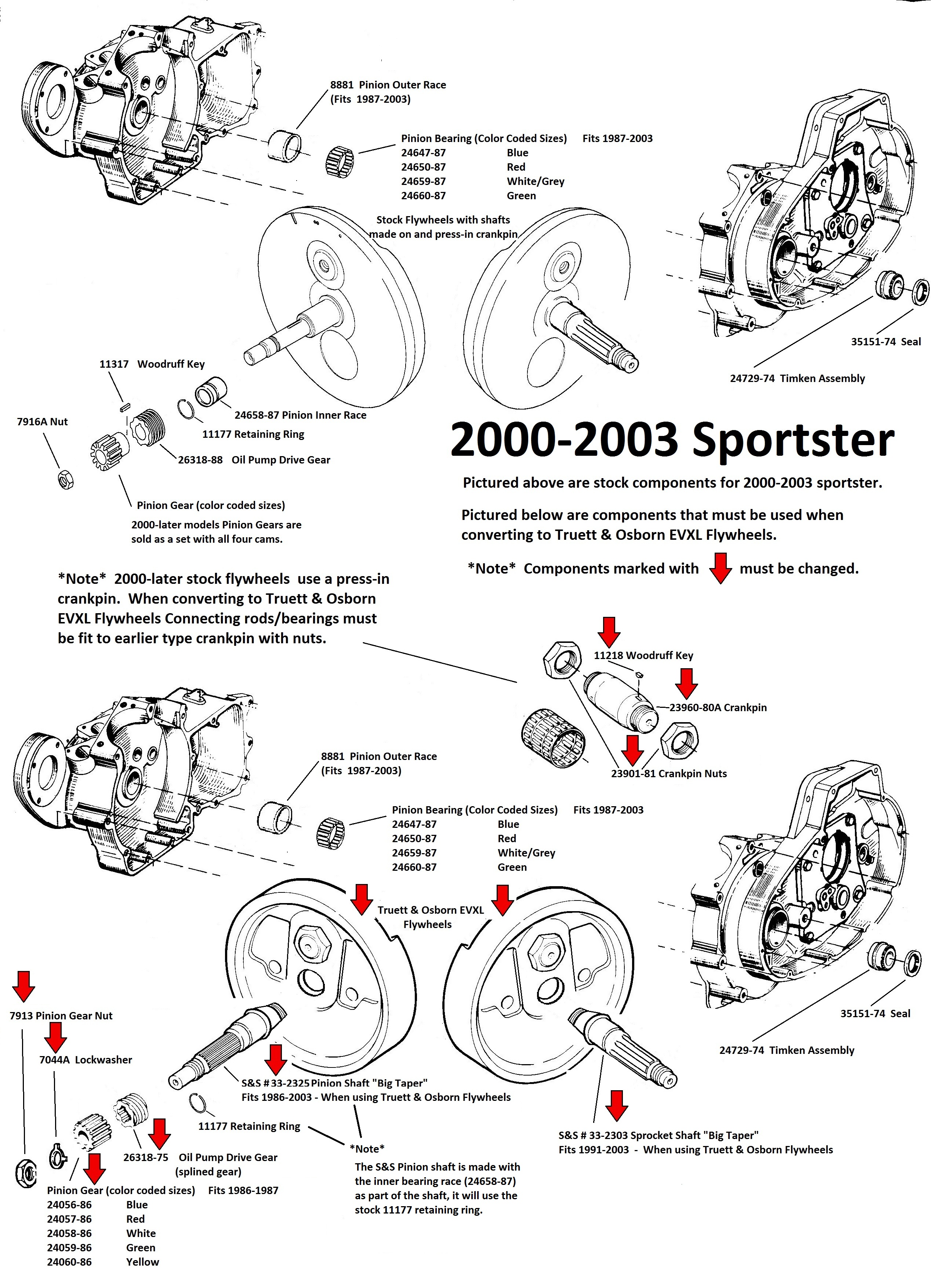

2000-2003
